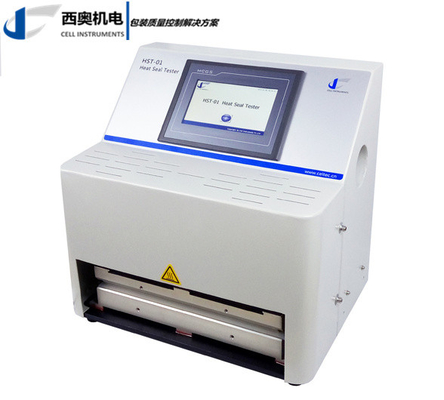

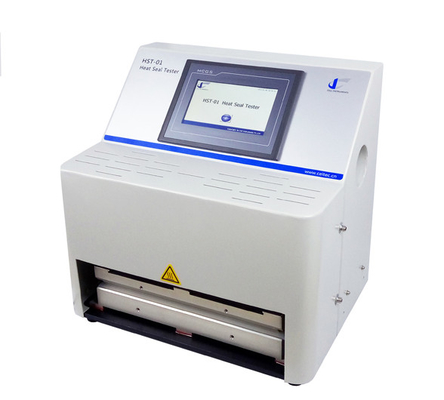

Heat Seal Tester ASTM D2054

The Heat Seal Tester ASTM D2054 is an advanced plastic heat sealability measuring device designed to assess the performance of heat seals in packaging materials. This high-precision instrument focuses on three critical parameters: sealing temperature, dwell time, and sealing pressure. The Heat Seal Tester ASTM D2054 ensures that manufacturers in industries such as packaging, food, medicine, and beverages achieve optimal seal integrity and quality.

Key Features of the Heat Seal Tester ASTM D2054

1. 7-Inch TFT Touchscreen: The user-friendly interface allows for easy navigation and real-time monitoring of test parameters.

2. PLC Control: A programmable logic controller (PLC) enables precise control over dwell time and sealing pressure, ensuring consistent results.

3. P.I.D. Temperature Control: Proportional-Integral-Derivative (P.I.D.) technology provides accurate sealing temperature control, enhancing repeatability and reliability in testing.

4. Uniform Heating: The aluminum encapsulated sealing jaws ensure uniform heating across the sealing surface, critical for producing high-quality seals.

5. Independent Heating: The design allows for independent heating of the upper and lower sealing jaws, providing flexibility in testing various materials.

6. Customizable Sealing Jaws: Sealing jaws can be tailored in terms of dimensions, shape, and surface texture to meet specific testing requirements.

Technical Specifications of the Heat Seal Tester ASTM D2054

• Sealing Temperature: Room Temperature to 300℃
• Temperature Deviation: ±0.2℃
• Dwell Time: 0.1 seconds to 9999 seconds
• Sealing Pressure: 0.15 MPa to 0.7 MPa
• Sealing Jaw Dimensions: 330mm × 10mm (Sealing Surface) - Customization Available
• Heating Configuration: Double heating of upper and lower jaws
• Gas Pressure Requirement: 0.7 MPa of Air
• Dimensions: 455mm (L) × 320mm (W) × 440mm (H)
• Port Size: Ф6 mm PU Hose
• Power Supply: AC 220V, 50Hz

Why Choose the Heat Seal Tester ASTM D2054?

The Heat Seal Tester ASTM D2054 is ideal for quality control laboratories and manufacturing facilities that demand high performance and precision. By using this tester, you can ensure that your packaging meets industry standards and regulations, leading to improved product safety and shelf life.
