Vacuum Packaging Leakage Testing Equipment Air Leak Tester Vacuum chamber ASTM D3078 Leaking Tester

  • Vacuum Packaging Leakage Testing Equipment Air Leak Tester Vacuum chamber ASTM D3078 Leaking Tester
  • Vacuum Packaging Leakage Testing Equipment Air Leak Tester Vacuum chamber ASTM D3078 Leaking Tester
  • Vacuum Packaging Leakage Testing Equipment Air Leak Tester Vacuum chamber ASTM D3078 Leaking Tester
  • Vacuum Packaging Leakage Testing Equipment Air Leak Tester Vacuum chamber ASTM D3078 Leaking Tester
  • Vacuum Packaging Leakage Testing Equipment Air Leak Tester Vacuum chamber ASTM D3078 Leaking Tester
  • Vacuum Packaging Leakage Testing Equipment Air Leak Tester Vacuum chamber ASTM D3078 Leaking Tester
Place of Origin China
Brand Name Cell Instruments
Certification CE
Model Number LT-02
Minimum Order Quantity 1 SET
Price Get An Offer
Packaging Details Plywood Carton
Delivery Time 3~5 days
Payment Terms TT, LC
Supply Ability At Stock

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Range -90KPa Standards ASTM D3078 , ASTM E515, GB/T 15171
Power 110~220V Test Space 270mm*210mm
Leave a Message
Product Description

Vacuum Packaging Leakage Testing Equipment is based on ASTM D3078 bubble emission method and detects the gross leaks of flexible packaging with headspace gas.



Vacuum Packaging Leakage Testing Equipment works by creating positive pressure inside pouch after vacuum is drawn away the pouch if force to plug small leaks.

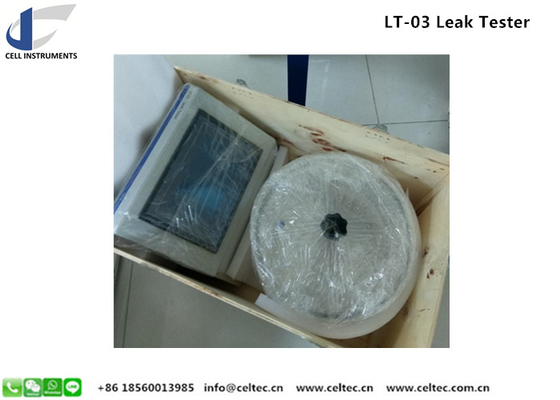

Vacuum Packaging Leakage Testing Equipment Air Leak Tester Vacuum chamber ASTM D3078 Leaking Tester 0





It has the following features:

1. Vacuum ejector betters than vacuum pump in creating a stable pressure

2. Digital vacuum degree and test time setting

3. Automatic vacuum maintenance and air back-flushing

4. Easy operation and maintenance

5. Transparent, thick and high quality PMMA chamber

6. Different chamber sizes customization

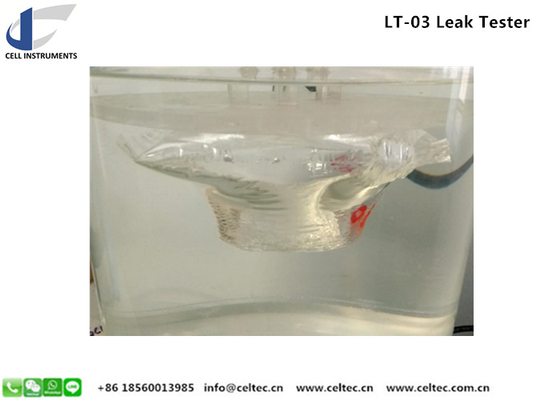

Vacuum Packaging Leakage Testing Equipment Air Leak Tester Vacuum chamber ASTM D3078 Leaking Tester 1

Technical Specification



Vacuum 0~-90KPa/0~-13PSI

Vacuum chamber size

Φ270 mm x 210 mm (H) (Standard)

Gas source

Compressed air

Gas Pressure

 0.7MPa/101.5PSI

Standards

ASTM D3078 , ASTM E515, GB/T 15171

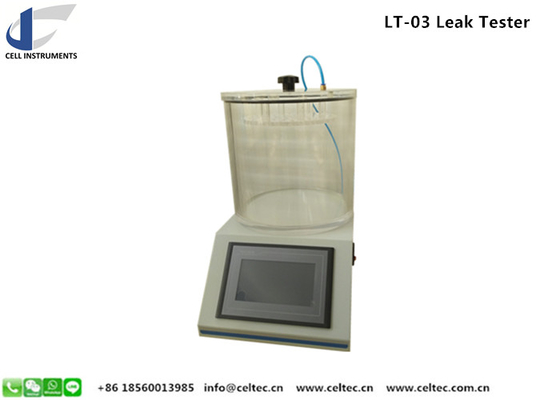

Vacuum Packaging Leakage Testing Equipment Air Leak Tester Vacuum chamber ASTM D3078 Leaking Tester 2

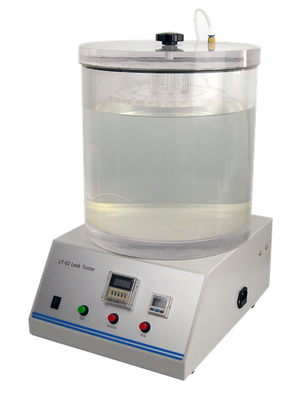

Vacuum Packaging Leakage Testing Equipment Air Leak Tester Vacuum chamber ASTM D3078 Leaking Tester 3

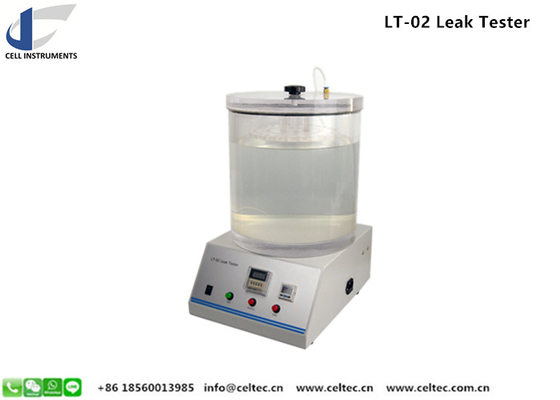

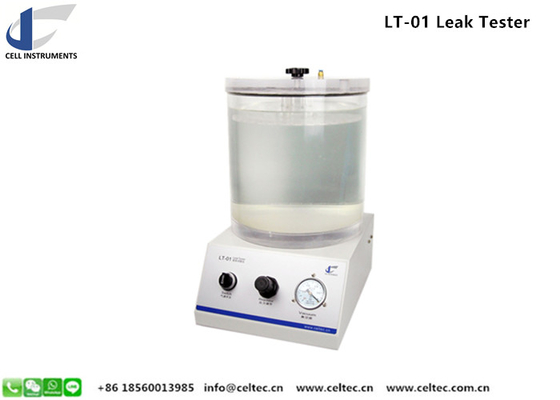

Vacuum Packaging Leakage Testing Equipment Air Leak Tester Vacuum chamber ASTM D3078 Leaking Tester 4Vacuum Packaging Leakage Testing Equipment Air Leak Tester Vacuum chamber ASTM D3078 Leaking Tester 5
