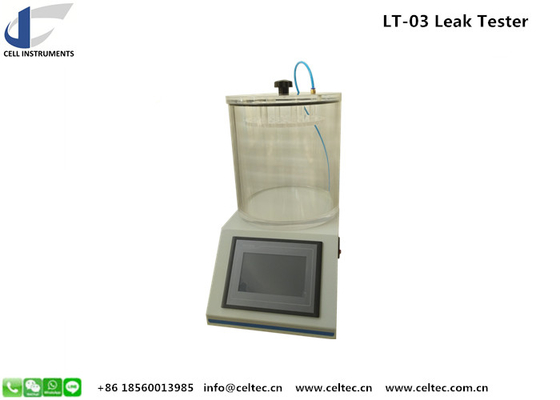

Packages leak detector follows ASTM D3078 bubble emission method and detects the gross leaks of flexible packaging with headspace gas.
It is working by creating positive pressure inside pouch after vacuum is drawn away the pouch if force to plug small leaks.
Technical Specification
Vacuum | 0~-90KPa/0~-13PSI |
Vacuum chamber size | Φ270 mm x 210 mm (H) (Customization available) |
Gas source | Compressed air |
Gas Pressure | 0.7MPa/101.5PSI |
Packages leak detector Standards
ASTM D3078: Standard Test Method for Determination of Leaks in Flexible Packaging by Bubble Emission
ASTM E515: Standard Test Method for Leaks Using Bubble Emission Techniques
